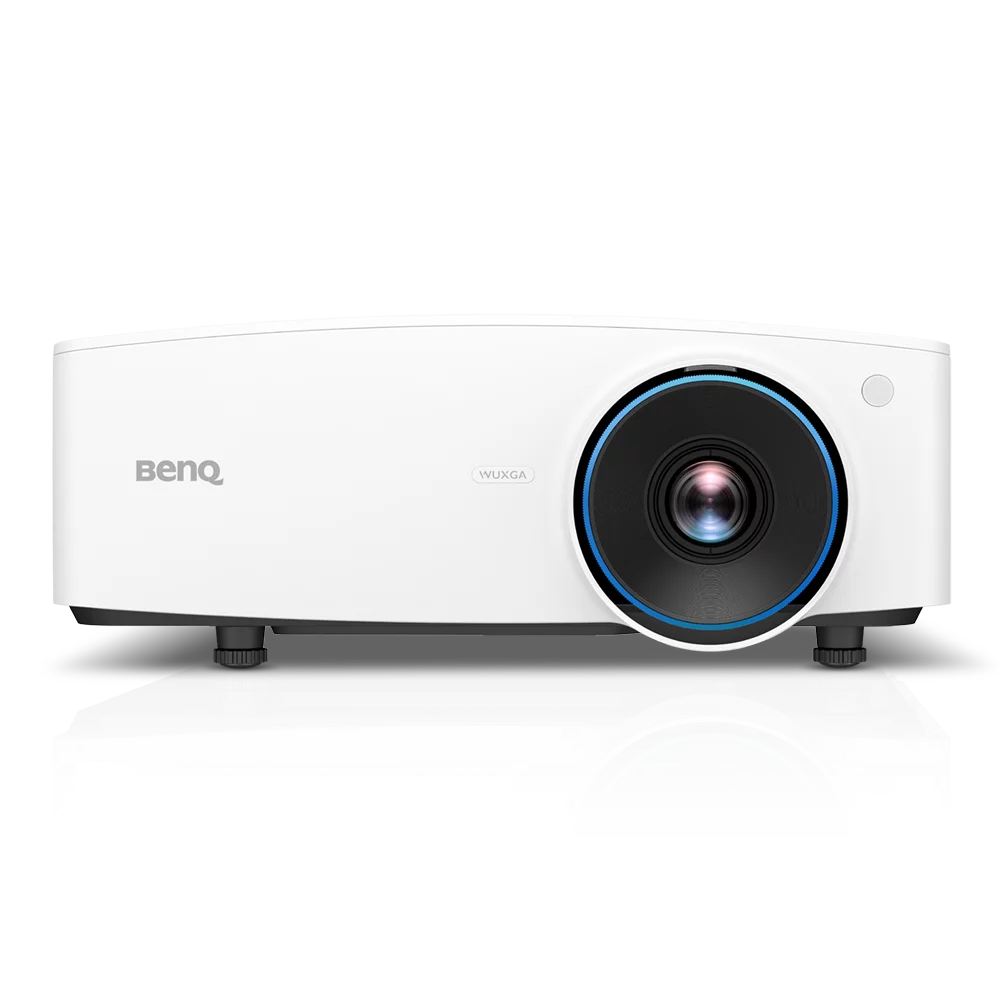

BENQ LU930 5000lms WUXGA
₹350000.00
3,000,000:1 contrast ratio
92% Rec.709 color coverage
IP5X dustproof mechanism reducing maintenance costs
All Specifications
Display
Brightness (ANSI lumens)
5000
Resolution
WUXGA (1920x1200)
Native Aspect Ratio
16:10
Contrast Ratio (FOFO)
3000000:1
Display Color
30 Bits (1,07 billion colors)
Light Source
Laser
Light Source Life
20000 hrs
Optical
Throw Ratio
1.36 ~ 2.18
Zoom Ratio
1.6x
Lens
F/# = 1.81 ~ 2.1,f = 14.3 ~ 22.9 mm
Projection Offset (Full-Height)
0%
Keystone Adjustment
2D, Vertical ± 30 degrees; Horizontal ± 30 degrees
Lens Shift Vertical
± 60%
Lens Shift Horizontal
± 23%
Rec. 709 Coverage
92%
Picture Modes
3D, Bright, Infographic, Presentation, sRGB, User 1, User 2, Video
Compatibility
Input Lag
2 frame (33.34ms) 60Hz
Resolution Support
VGA(640 x 480) to WUXGA_RB(1920 x 1200) *RB=Reduced blanking
Horizontal Frequency
15K~102KHz
Vertical Scan Rate
23~120Hz

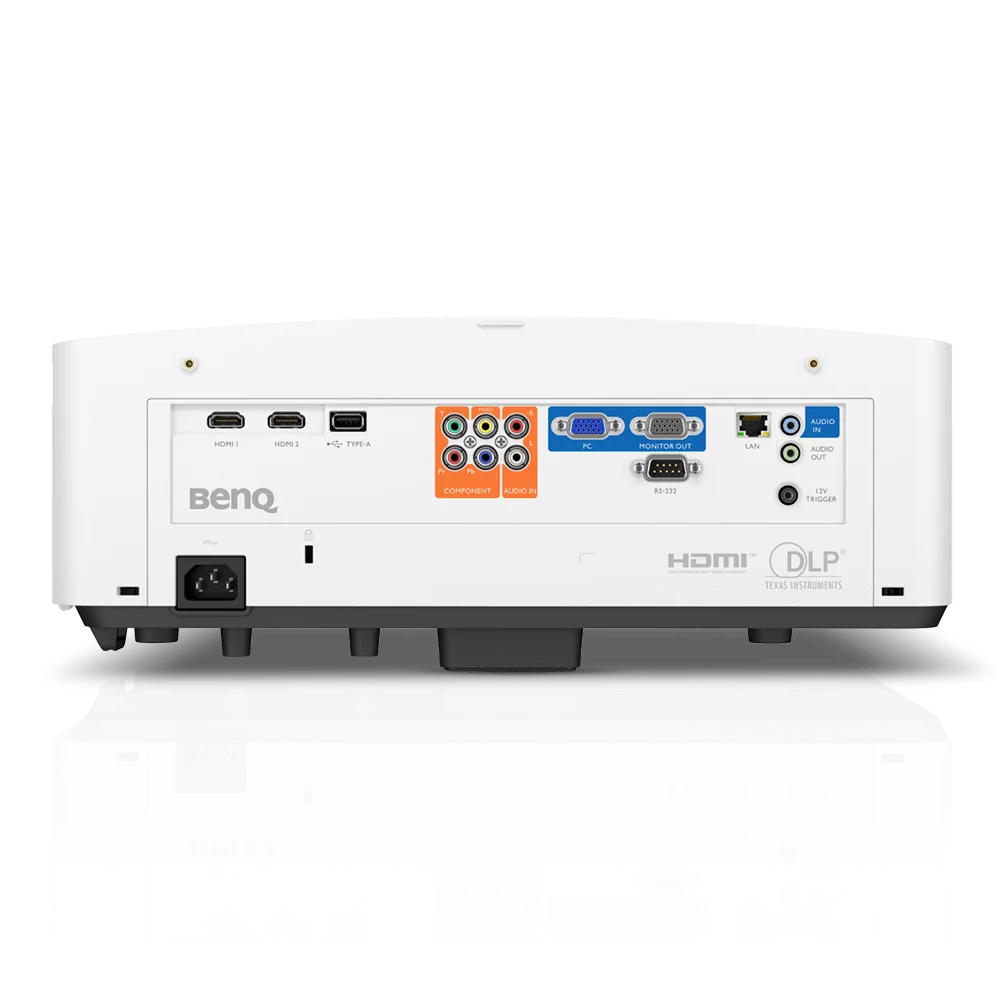

I/O Interface
PC in (D-sub 15pin)
(x1), PC in-1
Monitor out (D-sub 15pin)
(x1)
Composite Video in (RCA)
(x1)
Component Video in (3RCA)
(x1)
HDMI in
(x2), HDMI-1 (1.4a/HDCP1.4), HDMI-2 (1.4a/HDCP1.4)
LAN (RJ45)
(x1)
USB Type A
(x1), USB Type A-1 (2.0/Power Supply1.5A/Service)
RS232 in (DB-9pin)
(x1)
DC 12V Trigger (3.5mm Jack)
(x1)
Audio
Speaker
(x2), 10W
Audio in (3.5mm Mini Jack)
(x1), 1
Audio out (3.5mm Mini Jack)
(x1), 1
Environment
Operating Temperature
0~40℃
Power Supply
AC 100 to 240 V, 50/60 Hz
Typical Power Consumption (110V)
415
Stand-by Power Consumption
<0.5W
Network Stand-by Power Consumption
<2W
Accessories
Remote Control w/ Battery
RCE016
Power Cord (by region)
x1 (1.8M)
HDMI cable
Yes, 1.8m
3D Glasses
(Optional), DGD5
Quick Start Guide
1 (21L)
Warranty Card (by region)
Yes
Anti-dust Filter
(Optional), Yes
Universal Ceiling Mount
Yes, CMG3
Dimension & Weight
Dimensions (WxHxD) (mm)
416 x166 x351
Net Weight (kg)
6.3
Projection System
Projection System
DLP
All Specifications
Display
Brightness (ANSI lumens)
5000
Resolution
WUXGA (1920x1200)
Native Aspect Ratio
16:10
Contrast Ratio (FOFO)
3000000:1
Display Color
30 Bits (1,07 billion colors)
Light Source
Laser
Light Source Life
20000 hrs
Optical
Throw Ratio
1.36 ~ 2.18
Zoom Ratio
1.6x
Lens
F/# = 1.81 ~ 2.1,f = 14.3 ~ 22.9 mm
Projection Offset (Full-Height)
0%
Keystone Adjustment
2D, Vertical ± 30 degrees; Horizontal ± 30 degrees
Lens Shift Vertical
± 60%
Lens Shift Horizontal
± 23%
Rec. 709 Coverage
92%
Picture Modes
3D, Bright, Infographic, Presentation, sRGB, User 1, User 2, Video
Compatibility
Input Lag
2 frame (33.34ms) 60Hz
Resolution Support
VGA(640 x 480) to WUXGA_RB(1920 x 1200) *RB=Reduced blanking
Horizontal Frequency
15K~102KHz
Vertical Scan Rate
23~120Hz
I/O Interface
PC in (D-sub 15pin)
(x1), PC in-1
Monitor out (D-sub 15pin)
(x1)
Composite Video in (RCA)
(x1)
Component Video in (3RCA)
(x1)
HDMI in
(x2), HDMI-1 (1.4a/HDCP1.4), HDMI-2 (1.4a/HDCP1.4)
LAN (RJ45)
(x1)
USB Type A
(x1), USB Type A-1 (2.0/Power Supply1.5A/Service)
RS232 in (DB-9pin)
(x1)
DC 12V Trigger (3.5mm Jack)
(x1)
Audio
Speaker
(x2), 10W
Audio in (3.5mm Mini Jack)
(x1), 1
Audio out (3.5mm Mini Jack)
(x1), 1
Environment
Operating Temperature
0~40℃
Power Supply
AC 100 to 240 V, 50/60 Hz
Typical Power Consumption (110V)
415
Stand-by Power Consumption
<0.5W
Network Stand-by Power Consumption
<2W
Accessories
Remote Control w/ Battery
RCE016
Power Cord (by region)
x1 (1.8M)
HDMI cable
Yes, 1.8m
3D Glasses
(Optional), DGD5
Quick Start Guide
1 (21L)
Warranty Card (by region)
Yes
Anti-dust Filter
(Optional), Yes
Universal Ceiling Mount
Yes, CMG3
Dimension & Weight
Dimensions (WxHxD) (mm)
416 x166 x351
Net Weight (kg)
6.3
Projection System
Projection System
DLP
Horizontal /Vertical Lens Shift
The convenience of the horizontal/ vertical lens shift systems deliver perfectly proportioned images despite installation or placement challenges in any venue.
Advanced Image Calibration for Ideal Projection Alignment
LU930 is equipped with a two-dimensional keystone correction range of ±30° on both horizontal and vertical axes to counteract the trapezoid effect, a common phenomenon when the projector must be installed off-center. Installers can use Corner Fit control to adjust each corner respectively, for perfectly aligned image geometry.
Highly Integrated Network Control and Management System Compatibility
Comprehensive Control System Compatibility
LU930 is widely compatible with leading projector control systems including Extron, Crestron and PJ-Link, which fulfills network control via LAN, making it simple to integrate into corporate network infrastructures. When there is no LAN infrastructure, LU930 also supports RS-232 for reliable long-distance Installations up to 15 meters.
Centralized Control with BenQ Software
BenQ centralized control software is a management tool for computers that enables remote and centralized management of multiple digital projectors by IT administrators/technicians via a local network. The management capabilities include the ability to remotely monitor, control, and configure projectors individually or as groups.
Centralized Upgrade Tool for Multiple Projector Maintenance
Administrators can centrally upgrade firmware on multiple BenQ projectors that are on the same local network via LAN (up to 253 projectors,) deploying the latest updates to all devices at once. This new application can upgrade firmware with a friendlier interface.
*For more information about the tool, please contact BenQ service.
User Advantage
Laser Light Creates Value Over Time
The laser light source of BenQ BlueCore laser is guaranteed for 20,000 hours of maintenance-free operation, saving costs for lamp replacement and maintenance. Based on the average brightness cut off of typical long-life lamps, BlueCores’s value exceeds that of 10 lamp replacements over the life of the projector.
Multiple lighting modes to maximize energy use
LU930 comes with multiple lighting modes to optimize the projected image in a variety of ambient lighting situations. The feature guarantees the ideal brightness level to enhance the overall visual experience in any environment, while optimizing energy consumption and extending the projector’s lifespan.
Instant On/Off and Signal Power On
BlueCore laser projector powers up in half the time of a lamp-based projector, reducing wait time and power consumption. The signal power on feature turns your projector on automatically once input signal from VGA or HDMI is detected, further enhancing the convenience of using BenQ’s BlueCore laser projectors.
