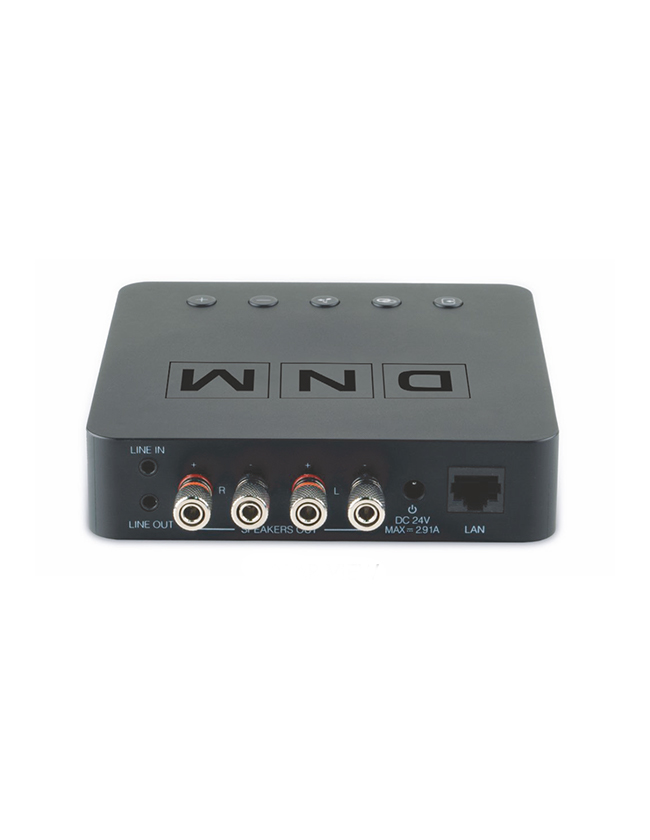

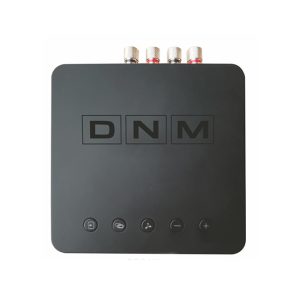

DNM AUDIO STREAMER WITH AMPLIFIER AS-04

₹17700.00₹14980.00

  • Wi-fi & bluetooth wireless audio streamer with audio amplifier ideal solution for multi-room audio applications using smart phones.

  • The DNM AS-04 supports audio streaming from smartphone, tablets, dlna enabled nas servers or your favorite music service over your wi-fi network. Control music all in one place. The easy to use muzo/wiim player app (ios and android) turns your smart device into a remote control. With this simple little box you can make your existing hi-fi speakers capable of playing wireless streaming music in high resolution. Simply connect the AS-04 to your wi-fi network, download the free muzo/wiim player app on your smartphone or tablet and you’re good to start streaming music. The only connection required between the AS-04 and your speakers is your speaker wire. You can also stream via Bluetooth.

  • Bluetooth 4.2 +

  • Wi-fi: IEEE 802.11 b/g/n standard

  • Wi-fi frequency: 2.4ghz(max 150mbps) 1t1r

  • Wi-fi encryption: WPA,WPA2,WPA2 mixed

  • Audio sample rates: 16bit, 48khz

  • Audio snr: 84db

  • Dynamic range: 98db thd+n:-85db

  •  Audio format: APE, WAV, FLAC,(ALAC)MP3; AAC:AAC-LC, HE-AAC, HE-AAC V2,WMA, 48khz/16bit or up to 192khz/24bit

  • Streaming protocol: DLNA, Airplay, Spotify connect, Qplay

  • Audio out: Analog audio

SPECIFICATIONS

OUTPUT POWER

2 x 25W RMS

MAX OUTPUT POWER

100W

FREQUENCY RESPONSE

20Hz ~ 20KHz

IMPENDANCE

4~8 ohm

BLUETOOTH RANGE

10 mtrs

INPUTS
BLUETOOTH,LINE IN

(3.5mm)

OPERATION POWER SUPPLY AC

110V ~ 240V/50/60Hz

DIMENSION

130x130x30mm

WEIGHT

0.3 kgs

Note : As part of our continuing programme to improve the design and quality of our products we shall be free to make changes in the design and specifications without any notice.
