DNM PUBLIC ADDRESS AMPLIFIER PA-2000
PUBLIC ADDRESS AMPLIFIER
₹31860.00

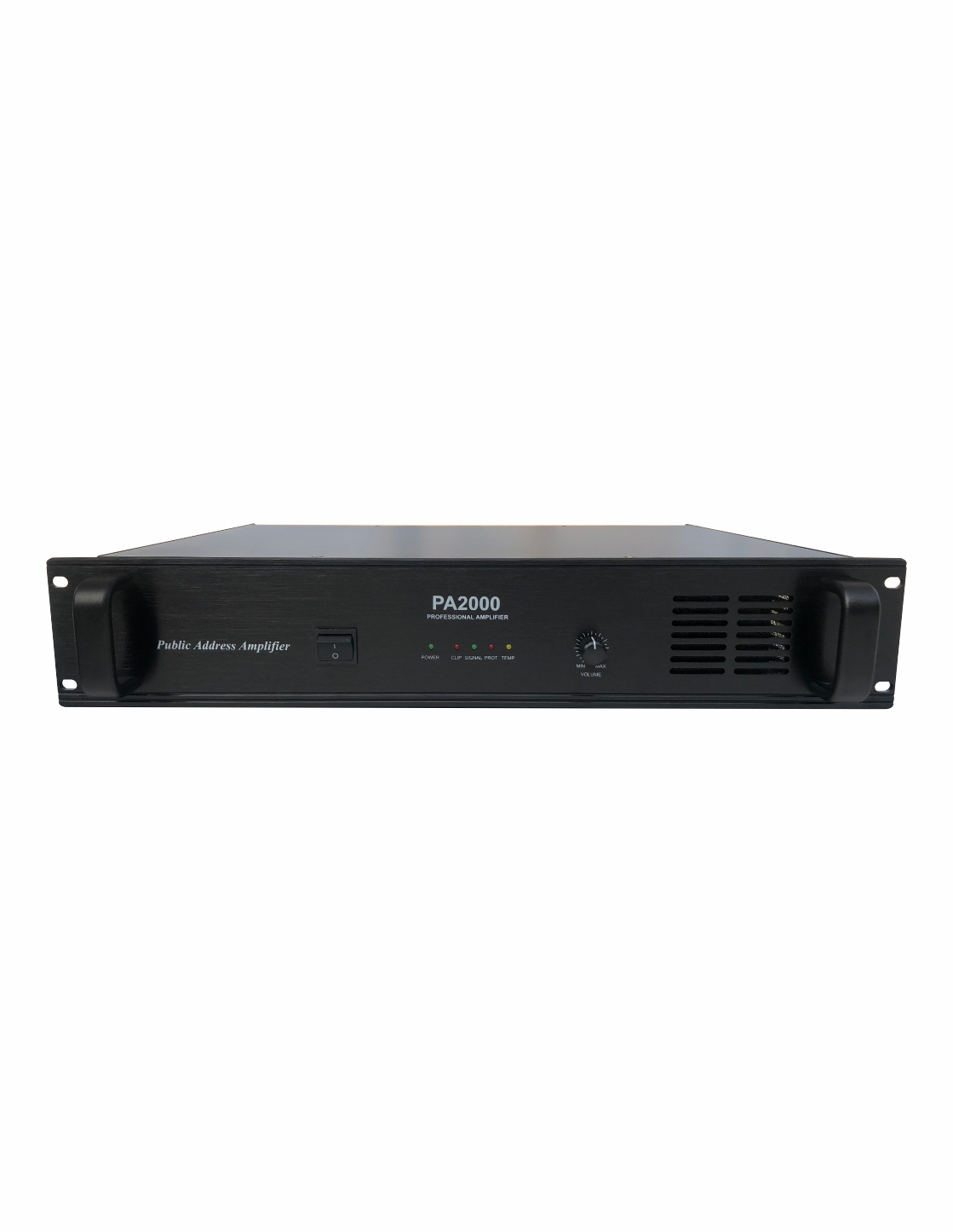

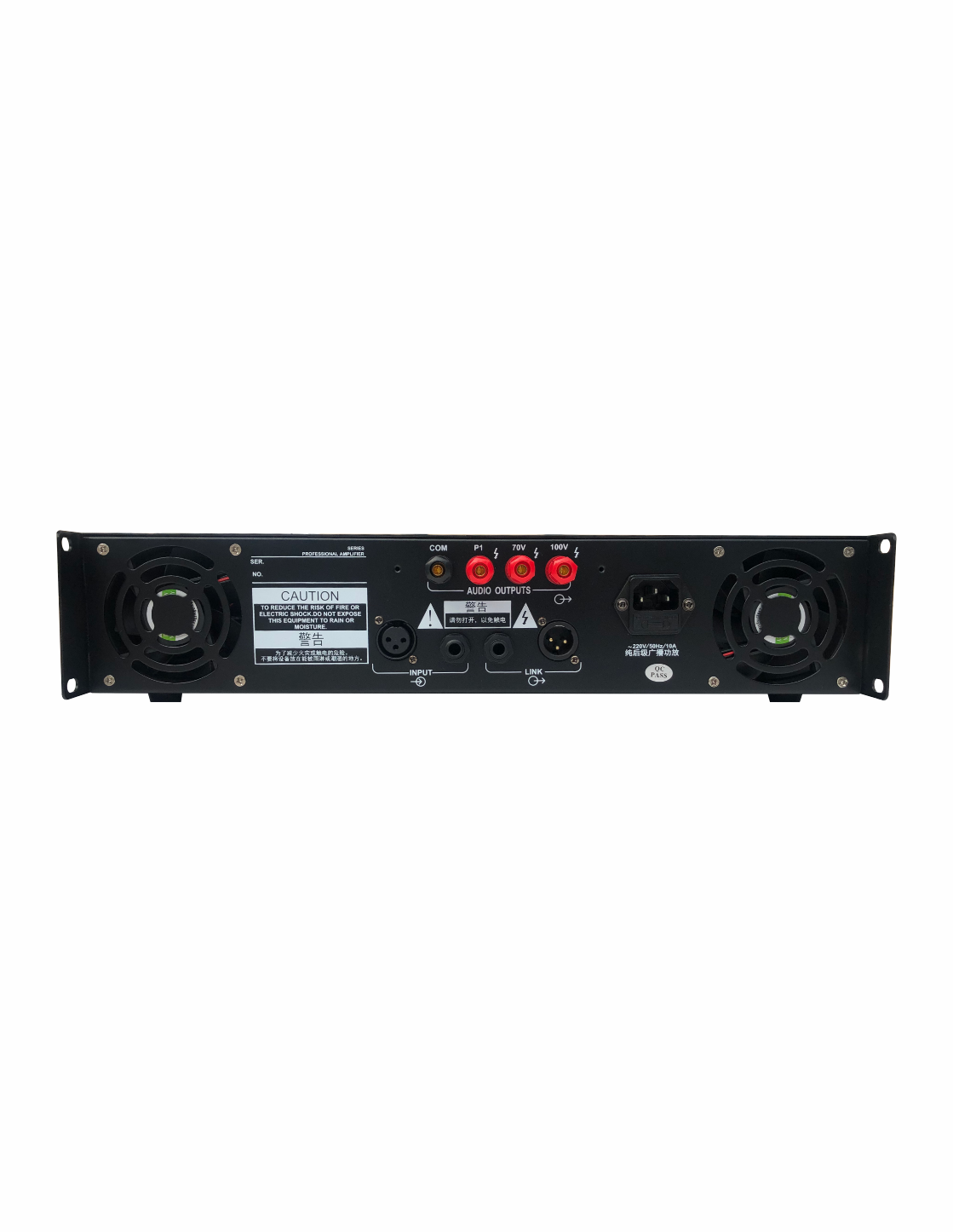

DNM PUBLIC ADDRESS AMPLIFIER PA-2000
The DNM PA 2000 finds application in distributed sound system for commercial applications, particularly public address (voice) and background music.
Examples of these are: background music/voice announcements in large homes, Commercial Establishments, Hospitals, Schools, Places of Worship and Outdoor areas.
It is Ideal for long distance distributions of large numbers of loudspeakers with a relatively low power output.
A Preamplifier/Mixer/Media Player can be used as a source for this Power Amplifier. This amplifier also has a facility to Daisy Chain one more Amplifier
SPECIFICATIONS
MAX RATED POWER | 500 Watts |
INPUT SENSITIVITY | 1.2V |
S/N RATIO | >80dB |
DAMPING FACTOR | 200:1 |
INPUT CMRR | Grater than 90dB |
FREQUENCY RESPONSE | 50Hz – 15kHz (+/-3dB) |
THD INTO 4 OHM/1kHz | <03% |
SLEW RATE | >15V/ Microsecond |
INDICATORS | “POWER”, “CLIP”, “SIGNAL”, “PROT”, AND ” TEMP” LEDs |
PROTECTION | Power turn on, turn off, high temperature, DC voltage & output short circuit |
AC POWER REQUIREMENT | AC 220-240V/50-60Hz |
POWER CONSUMTION | 850W |
DIMENSIONS | 483 mm(W) x 380 mm(D) x 88mm(H) |
GROSS WEIGHT | 15.5 KG |
NET WEIGHT | 12 KG |
Note : As part of our continuing programme to improve the design and quality of our products we shall be free to make changes in the design and specifications without any
