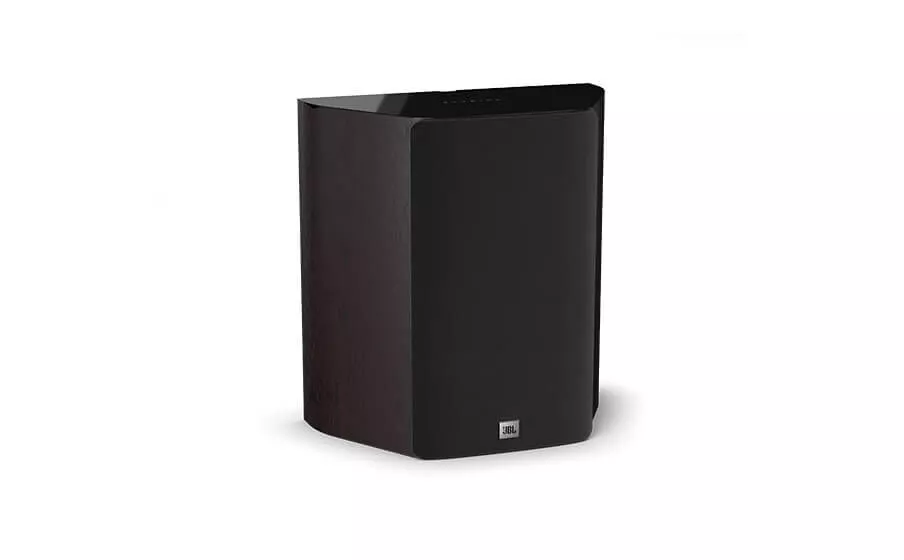

The JBL Studio 610 is a high-performance on-wall loudspeaker utilizing JBL's 2414H-1 1-inch compression driver mated to a High-Definition Imaging horn complemented by a 5.25-inch PolyPlas cone woofer. The elegant cabinet design includes a magnitically attached grille and brings an element of sophistication to any room. The Studio 6 Series delivers big dynamics, detailed sound, and powerful bass for true high-fidelity sound.

Top-graded PolyPlass cones

High-quality sounding compression drivers

New, appealing form factor

FEATURES

High-definition imaging Waveguide with high-frequency compression driver

General Specifications

• Single 5.25", 2-way compression driver wall mountable surround loudspeaker5.25" (133mm) PolyPlas Low-Frequency Woofer

• High Definition Imaging (HDI) Waveguide with 1” (25mm) High Frequency Compression Driver Yes

• Recommended Amplifier Power Max 100W

• Frequency Response 65Hz – 40kHz

• Sensitivity 84dB @ 1M, 2.83V

• Nominal Impedance 6 Ohms

• Crossover Frequencies 2.4 kHz

• Enclosure Type Sealed Enclosure

• Dimensions (W x D x H) 250 x 135 x 300mm
