About this item

• IN-WALL SPEAKER - Let powerful sound fill your space—not your speakers. Designed with a magnetic, zero-bezel grille, the JBL Studio 6 speaker is designed to blend into your walls, so you only know it’s there when you turn it on.

• EASY DOES IT - There’s nothing tricky about this speaker. Easy to install, with a sturdy design that minimizes vibration, it offers a home cinematic experience backed by more than 70 years of audio technology expertise.

• FEEL THE DRAMA - The JBL Studio 6 speaker has high sensitivity and high power output. PolyPlas woofers enable deep, detailed, accurate sound. Give your music, films, sports, and games more character & clarity than ever before.

• BE A PRO - With a JBL compression driver straight from the professional world, and integrated treble and bass control, this professional quality, high-performance speaker can be easily adjusted to fit your home.

• THE SOUND PROMISE - JBL has brought music to life in a way people can feel for over 70 years. From Woodstock to the Motion Picture Academy, our speakers unleash the power of music so you can live life to the fullest, wherever and whenever.

•

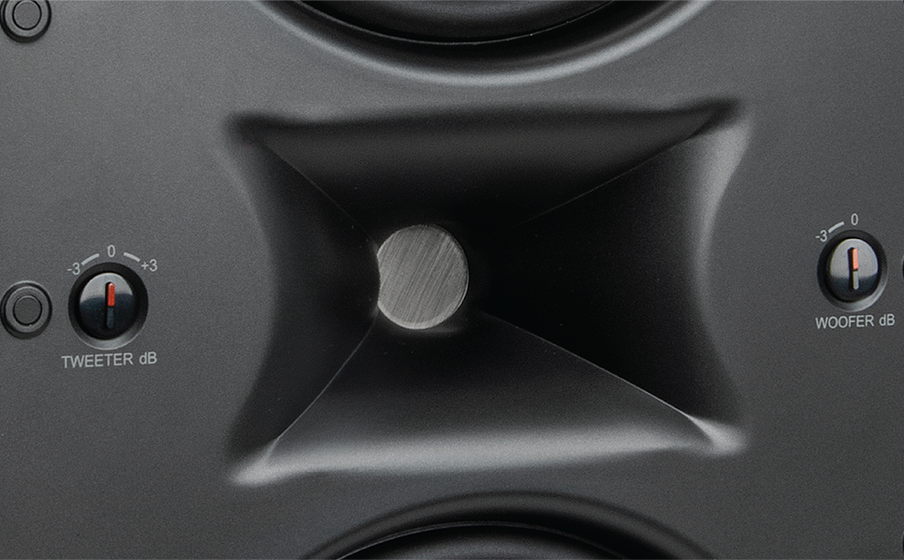

  1" (25mm) Compression Driver with High-Definition Imaging (HDI™) waveguide

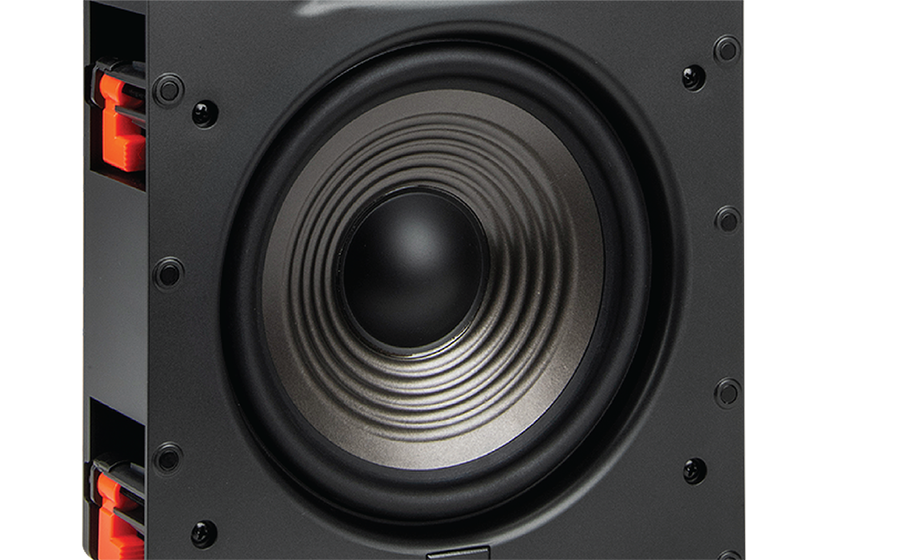

  Dual 6.5" (165mm) Polyplas® woofer

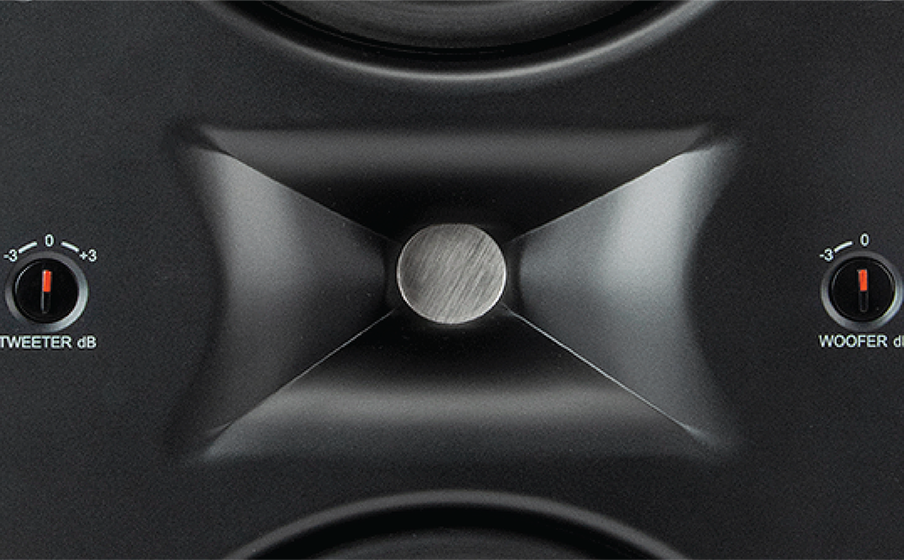

  High frequency level adjustment and Low Frequency boundary compensation

  Dual 6.5" (165mm) 2-way In-Wall Loudspeaker

  With dual 6.5" (165mm) Polyplas® woofers and a 1" (25mm) Compression Driver with High-Definition Imaging (HDI™) waveguide the Studio 66LCR is perfect for front channels in any home theater. The Dog Leg mounting system allows for easy installation and the zero bezel grilles make the 66LCR visually discrete so they blend into the walls seamlessly.

  General Specifications

  High Frequency Transducer

  1" (25mm) Compression Driver with High-Definition Imaging (HDI™) waveguide

  Low Frequency Transducer

  Dual 6.5" (165mm) Polyplas® woofer

  Nominal Impedance

  6-Ohm

  Sensitivity (2.83V@1m)

  91dB

  Power Handling

  50W RMS (200W Dynamic)

  Recommended Amplifier Power

  50 - 70W

  Frequency Response

  45Hz - 20kHz

  Crossover Frequency

  2.5kHz

  Grille Dimensions (HxW)

  8.2" x 18.6" (209mm x 473mm)

  Cutout Dimensions (HxW)

  7" x 17.4" (180mm x 443mm)

  Mounting Depth

  3.74in (95mm)
