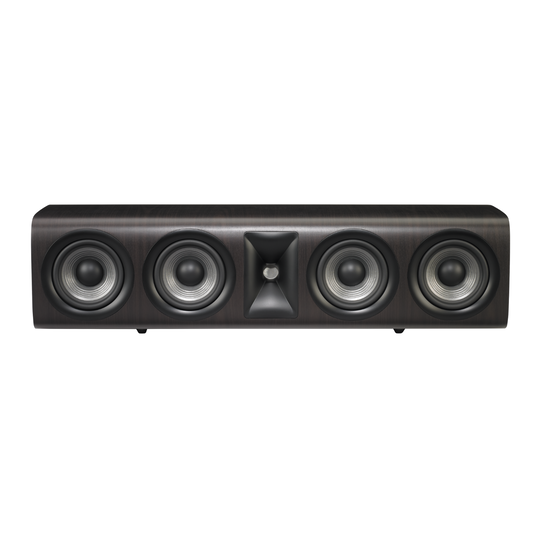

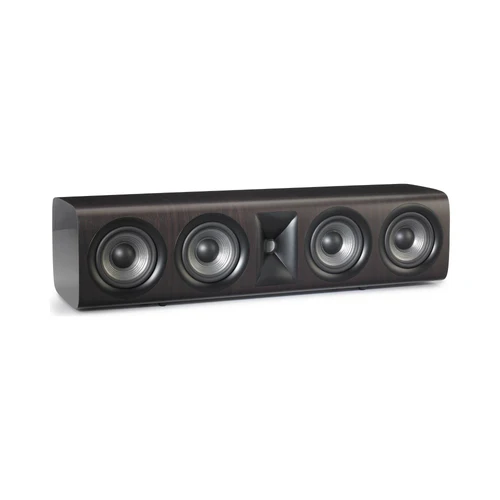

Studio 665C

The new JBL Studio 6 speaker system is everything your inner audiophile was hoping for. Complete with advanced PolyPlas cones, powerful acoustics speaker drivers, and fitted with an all-new, high-definition imaging waveguide using a high-frequency compression driver, your home listening experience will never be quite the same.

General Specifications

Quad 5.25", 2.5-way compression driver center loudspeakerYes

Quad 5.25" (133mm) PolyPlas Low-Frequency WooferYes

High Definition Imaging (HDI) Waveguide with 1” (25mm) High Frequency Compression DriverYes

Recommended Amplifier PowerMax 200W

Frequency Response58Hz – 40kHz

Sensitivity90 dB @ 1M, 2.83V

Nominal Impedance6 Ohms

Crossover Frequencies600 Hz, 2.2 kHz

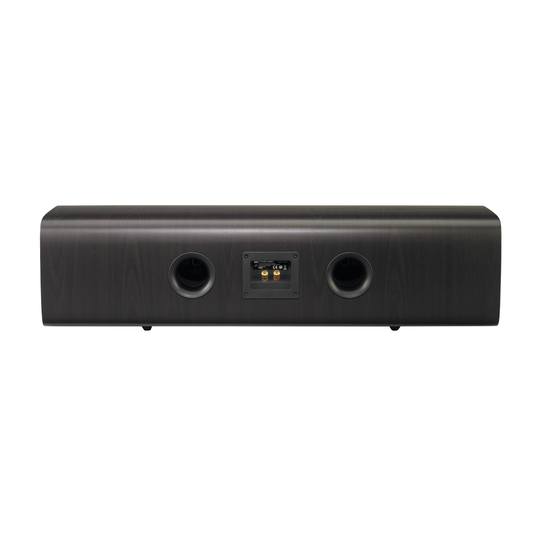

Enclosure TypeBass-Reflex via Rear-Firing Tuned Port

Dimensions (W x D x H)760 x 230 x 190mm

Features

Top-graded PolyPlass cones

High-quality sounding compression drivers

New, appealing form factor

High-definition imaging Waveguide with high-frequency compression driver
