JBL STUDIO S6 6IW (PER UNIT)
6.5" (165mm) 2-way In-Wall Loudspeaker
₹39990.00
_HDI_Waveguide-Web-1920x640.png?sw=904&sh=560)

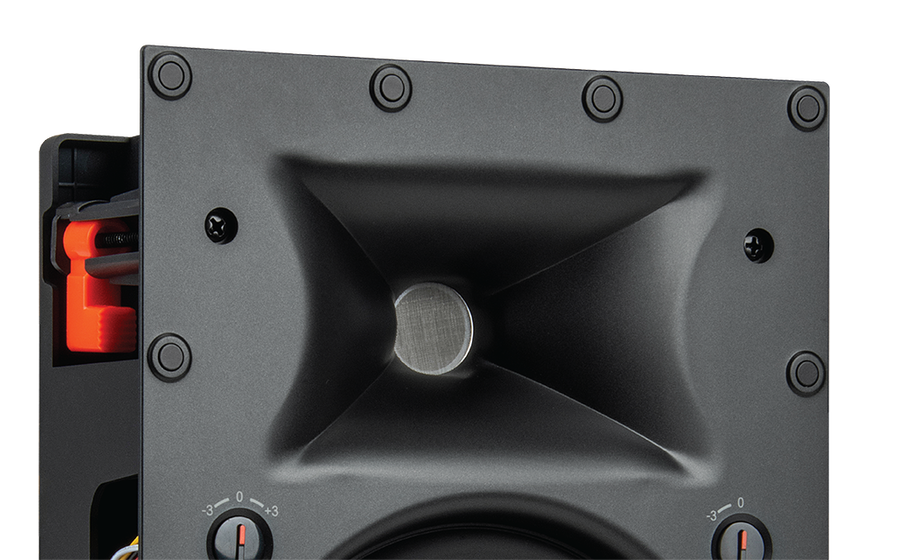

1" (25mm) Compression Driver with High-Definition Imaging (HDI™) waveguide
_Polyplas_Cone-Web-1920x640.png?sw=904&sh=560)

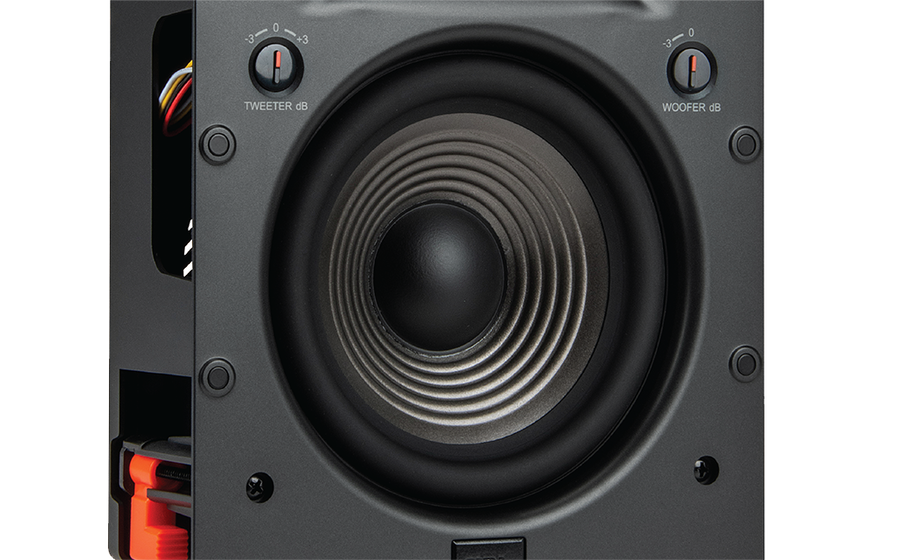

6.5" (165mm) Polyplas® cone woofer
_Level_Adjustments-Web-1920x640.png?sw=904&sh=560)

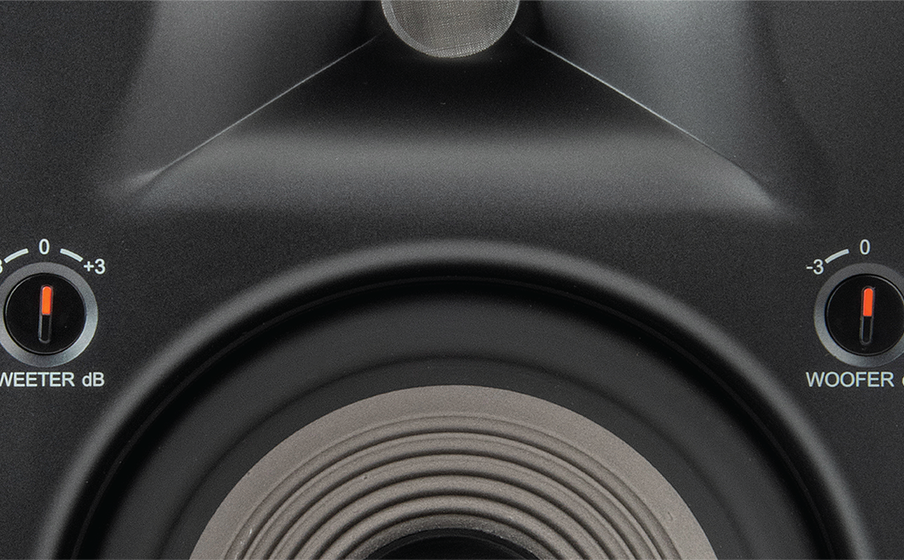

High frequency level adjustment and Low Frequency boundary compensation
Description
Studio 6IW
Featuring a 1" (25mm) Compression Driver with High-Definition Imaging (HDI™) waveguide and a 6.5" (165mm) Polyplas® cone woofer, the Studio 6IW perfect for use as fronts, sides, or rear channels of a high performance home theater. The dog leg mounting system provides easy installation and the zero bezel grilles make the 6IW visually discrete so they blend into the walls seamlessly.
General Specifications
High Frequency Transducer
1" (25mm) Compression Driver with High-Definition Imaging (HDI™) waveguide
Low Frequency Transducer
6.5" (165mm) Polyplas® woofer
Nominal Impedance
6-Ohm
Sensitivity (2.83V@1m)
91dB
Power Handling
50W RMS (200W Dynamic)
Recommended Amplifier Power
50 - 70W
Frequency Response
45Hz - 20kHz
Crossover Frequency
2.5kHz
Grille Dimensions (HxW)
8.2" x 12" (209mm x 305mm)
Cutout Dimensions (HxW)
7.1" x 10.8" (180mm x 275mm)
Mounting Depth
3.74in (95mm)
