Awesome hideaway sound from JBL

I installed in-wall speakers as part of my home theater, and love the rich, dynamic detail I hear from music and movies. JBL's Studio 2 8IW in-wall speaker can help deliver a similarly impactful listening experience in your system.

Use a pair of them as part of a stealthy in-wall stereo system, or as the left- and right-channel speakers in a JBL surround sound system.

Tight bass and clear highs

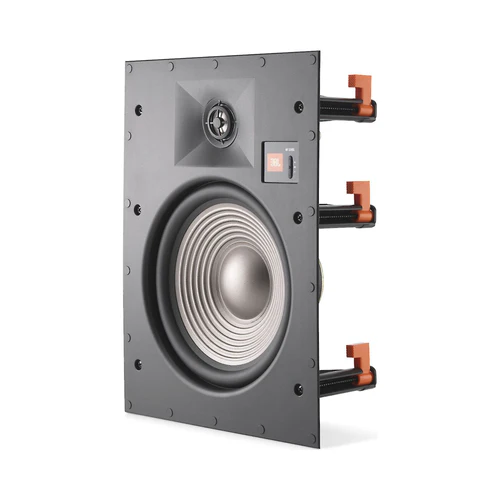

This speaker's tight bass and clean midrange come courtesy of an 8" woofer, while smooth highs flow from an aimable 1" tweeter.

A three-position tweeter level control lets you cut or boost high-frequency output to ideally suit your room's acoustics.

Born from JBL's storied audio heritage

The Studio 2 Series' distinctive sound was modeled after JBL's legendary M2 Master Reference Monitor — one of the best speakers they ever created.

JBL's proprietary HDI (High Definition Imaging) waveguide technology helps this speaker deliver optimum sound quality throughout your room.

DIY installation

If this is a do-it-yourself install, check out my guide to installing in-wall speakers, along with their selection of in-wall speaker wire.

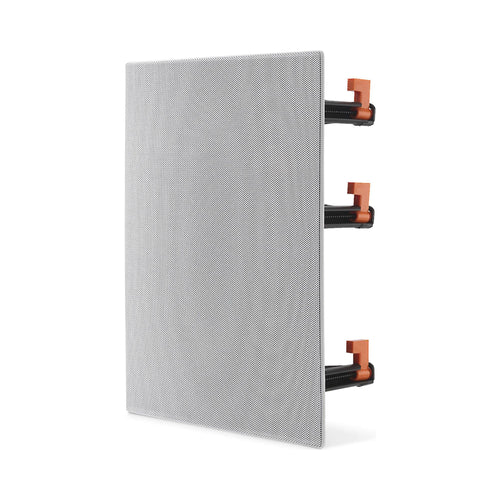

You can paint the included magnetic grille to have your speaker blend in with your decor.

Product highlights:

• 8" Polyplas® woofer

• 1" CMMD® (Ceramic Metal Matrix Diaphragm) Lite tweeter

• tweeter is aimable to direct high frequencies toward you

• three-position tweeter level control cuts or boosts high-frequency output to best suit your room's acoustics

• frequency response: 30-20,000 Hz

• recommended amplifier power: 100 watts RMS

• impedance: 8 ohms

• sensitivity: 88 dB

• includes paintable magnetic grille

• cutout dimensions: 8-15/16"W x 11-15/16"H

• overall dimensions: 10"W x 13"H

• mounting depth: 3-13/16"

• warranty: 5 years

•

  1" (25mm) Compression Driver with High-Definition Imaging (HDI™) waveguide



  8" (203mm) Polyplas® cone woofer



  High frequency level adjustment and Low Frequency boundary compensation

  Frequency response	30-20,000 Hz
  Recommended amplifier power	100 watts RMS
  Impedance	8 ohms
  Sensitivity	88 dB
  Cutout dimensions	8-15/16"W x 11-15/16"H
  Overall dimensions	10"W x 13"H
  Mounting depth	3-13/16"
