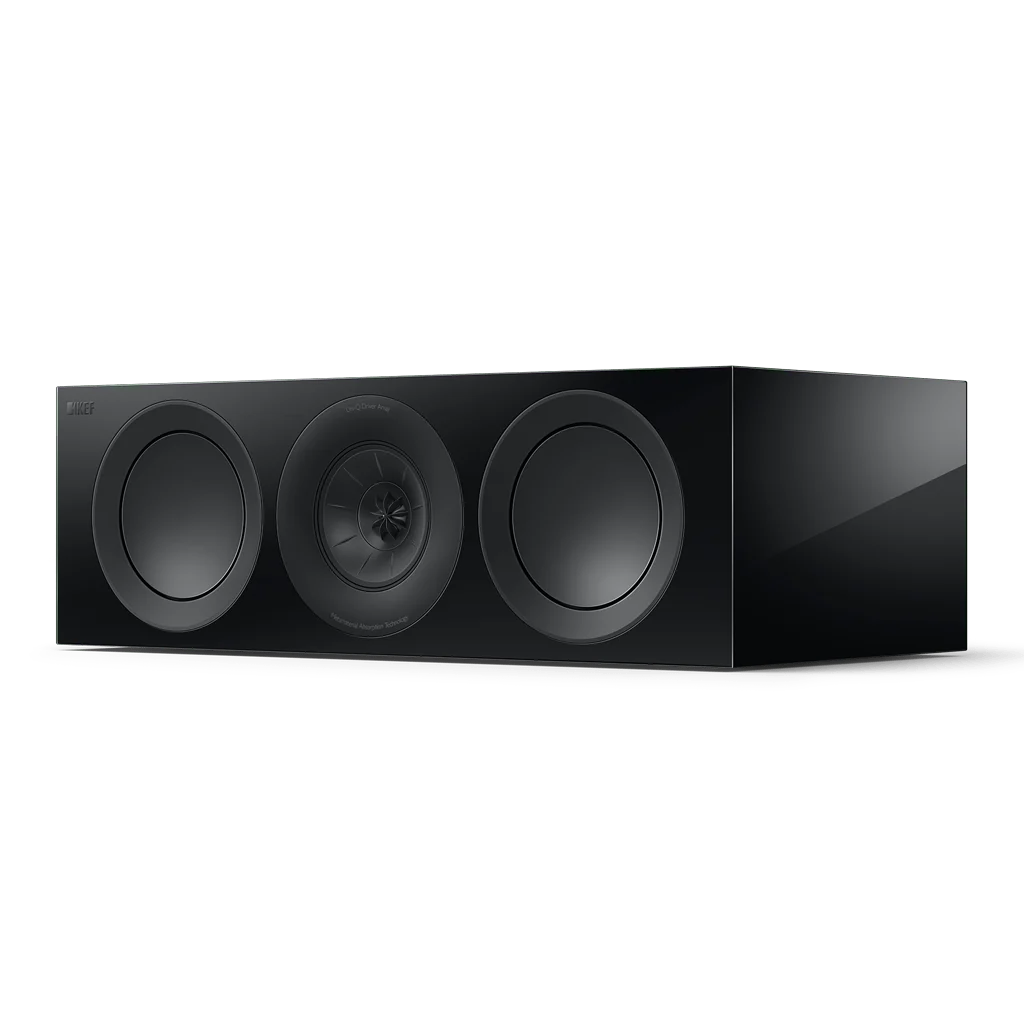

Flagship three-way centre channel speaker

Featuring the same 12th generation Uni-Q® driver array with MAT™ as the R Series stereo models for perfect tonal matching, and two powerful 6.5’’ hybrid aluminium bass drivers, the R6 Meta delivers an immersive listening experience that brings movies vividly to life. It is highly versatile and can be used in an LCR (Left-Centre-Right) configuration.

DESIGN

Three-way closed box

DRIVE UNITS

Uni-Q Driver Array:
HF: 25 mm (1 in.) vented aluminium dome with MAT
MF: 125 mm (5 in.) aluminium cone
Bass Unit:
LF: 2 x 165 mm (6.5 in.) hybrid aluminium cone

CROSSOVER FREQUENCY

500 Hz, 2.4 kHz

FREQUENCY RANGE (-6dB)

55 Hz - 50 kHz

TYPICAL IN-ROOM BASS RESPONSE (-6dB)

40 Hz

FREQUENCY RESPONSE (±3dB)

65 Hz - 28 kHz

HARMONIC DISTORTION (90dB, 1m)

<1% 65 Hz and above
<0.5% 93 Hz - 20 kHz

MAXIMUM OUTPUT

111 dB

AMPLIFIER REQUIREMENTS

15 - 250 W

NOMINAL IMPEDANCE

4 Ω (min. 3.2 Ω)

SENSITIVITY (2.83V/1m)

88 dB

WEIGHT *

17.8 kg (39.2 lbs)

DIMENSION (H x W x D) WITH TERMINAL *

200 x 625 x 339 mm (7.9 x 24.6 x 13.3 in.)

FINISHES

Black Gloss / White Gloss / Walnut

DOWNLOADS

R Series User ManualR Series Information SheetR Series White PaperR Series Brochure

An icon born from The Reference

A suite of class-leading technological innovations drawn from The Reference for exceptional acoustic performance.

Metamaterial Absorption Technology

Absorbs 99% of unwanted sound for pure and natural sound.

Listen your way

Designed to be versatile, it can be used in an LCR configuration.

12th generation Uni-Q®

Acts as a single point source to enlarge the 'sweet spot' and disperse sound more evenly.

Perfect tonal match

Built to match any of the R Series speakers, with the same sized Uni-Q® arrays as the rest of the range.

True bass definition

Hybrid aluminium bass drivers with greater driver excursion for tight, deep, controlled bass.

What is in the box

1 unit of R6 Meta loudspeaker
1 piece of microfiber grille
Rubber feet
User manual and warranty information
