VERSATILE HIGH-PERFORMANCE SOUND

It can be an on-wall surround speaker for a compact home theater system in a small to mid-sized room. It can be part of a desktop stereo setup for extreme gaming or computer-based video applications. The OWM3 goes practically anywhere a speaker can go and does practically anything a speaker can do. That's how versatile the OWM3 is.

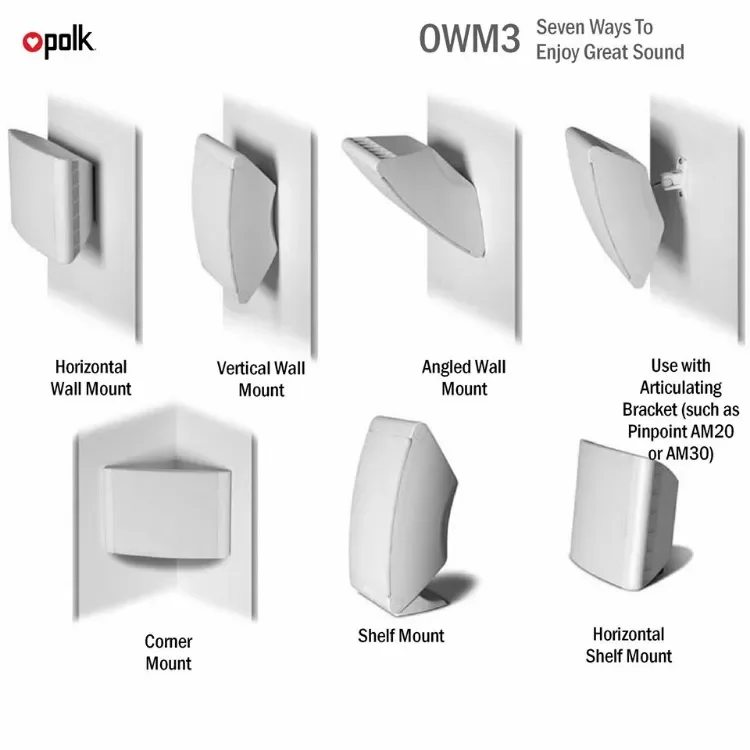

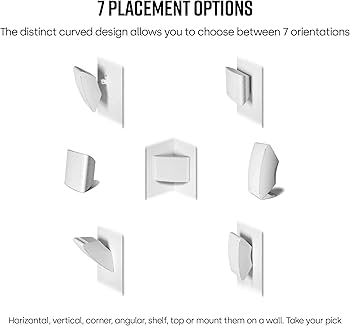

MOUNTING OPTIONS

1. Angled wall mount 2. Corner mount 3. Horizontal wall mount 4. Vertical wall mount 5. Shelf mount 6. Horizontal shelf mount 7. Use an optional articulating bracket (such as OmniMount 10.0 not included) for ceiling or swiveled wall use. (If you can think of any more, please let us know!)

CAPACITIVE COUPLING TECHNOLOGY

Featuring CCT, an advanced signal-blocking technology that overcomes the usual limitations of small-enclosure loudspeakers (slim dynamics and no low frequency response), delivers extended dynamic range and enhancing deep bass response for clear, detailed musicality with little or no coloration.

• Orientation• Vertical
  • Horizontal

• Height10" (25.4 cm)

• Width7" (17.78 cm)

• Depth4" (10.16 cm)

• Weight4 lbs (1.81 kg)

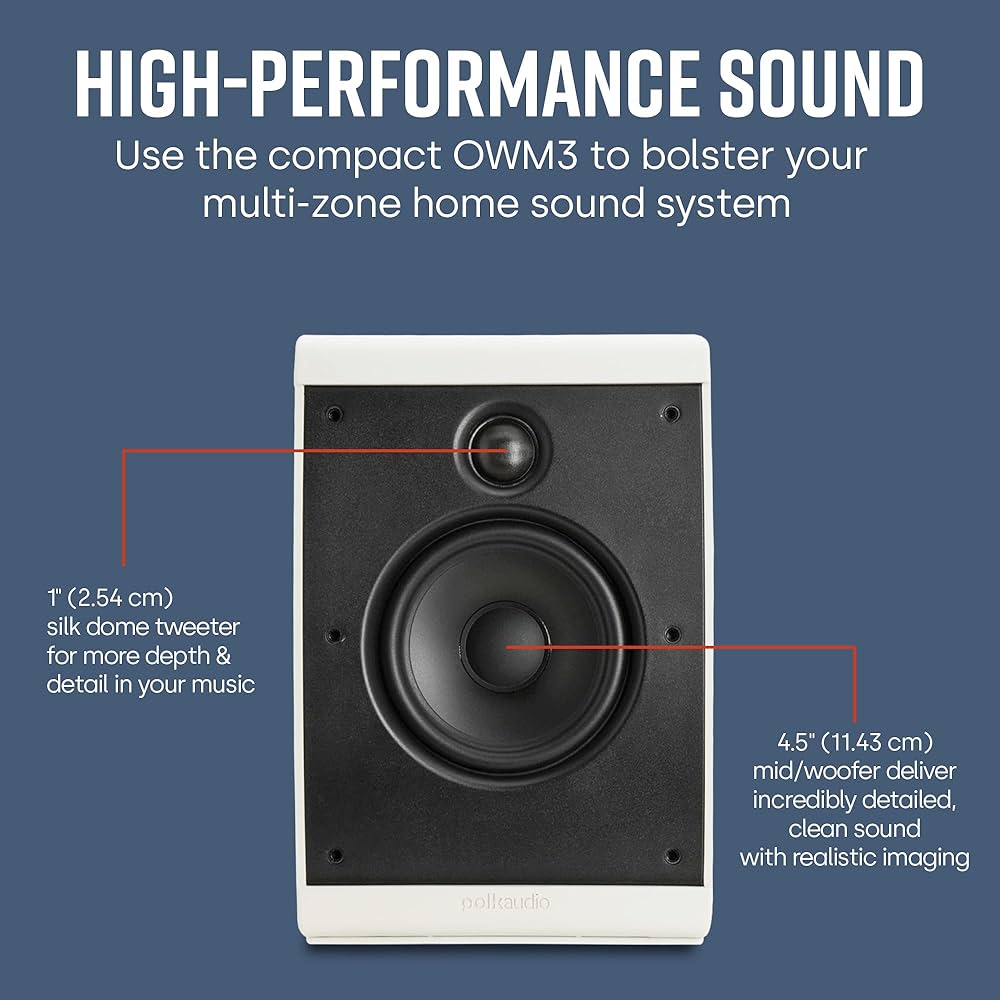

• Front Array Driver Complement• (1) 4.5" (11.43 cm) d (Round) - Mid/Woofer
  • (1) 1" (2.54 cm) d (Round) - Tweeter

• Total Frequency Response80 Hz → 25 Hz

• Nominal Impedance8 ohms

• Sensitivity 1 watt 1 meter89 dB

• Lower and Upper -3dB Limits100 Hz → 22 Hz

• Mounting TypeKeyhole Hanger

• Available Orientations• Vertical
  • Horizontal

• Mounting Location• Back of Speaker
  • Bottom of Speaker
  Near: Bottom, Center

• Mounting Type1/4" 20 Threaded Insert

• Available Orientations• Horizontal
  • Vertical

• Mounting Location• Back of Speaker
  • Bottom of Speaker
  Near: Bottom, Center

• Mounting TypeKeyhole Hanger

• Available OrientationsHorizontal

• Mounting LocationBack of Speaker - Near: Center

• Mounting TypeKeyhole Hanger

• Available Orientations• Horizontal
  • Vertical

• Mounting Location• Back of Speaker
  • Bottom of Speaker
  Near: Bottom, Center

• Recommended Amplifier Power Per Channel20 watts → 100 watts

• Audio Inputs-

• Speaker Inputs(1) 5-way Binding Posts - Gold-Plated
