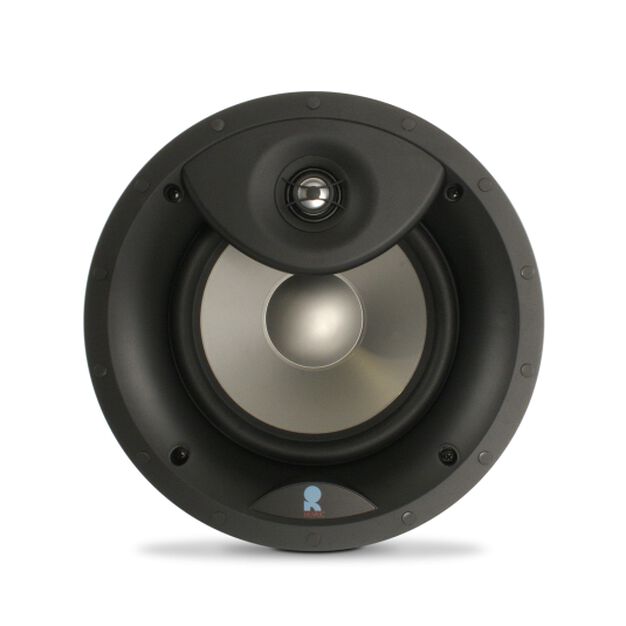

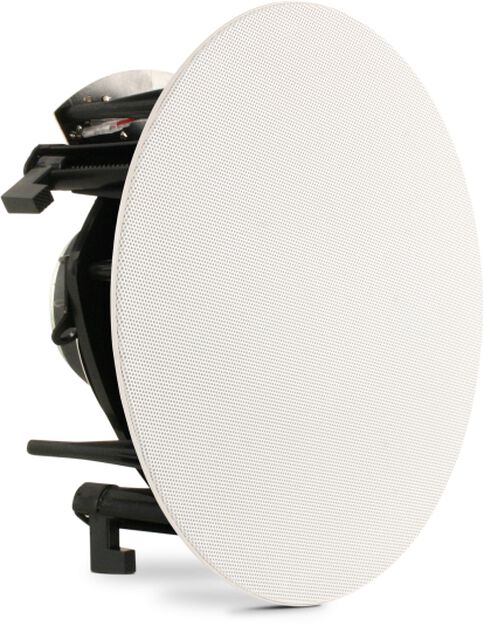

REVEL C263 6 ½” In-Ceiling Loudspeaker
₹14990.00
• 6-½” aluminum cone, cast polymer frame woofer • 1” aluminum dome swiveling tweeter with waveguide • Sensitivity - 86dB at 2.83V, 1M • Recommended Amplifier Power Range - 10W-100W RMS • Mounting Depth - 4.8” (120mm) • Weight - 3.1 lbs (1.4kg)
C263
Since the first Revel® speakers in 1996, Revel products have stood at the forefront of loudspeaker design and performance. Revel in-ceiling loudspeakers draw upon the same research, resources and unique perspective that put all Revel loudspeakers in a class by themselves. Revel in-ceiling loudspeakers provide unparalleled value and are known for their standard-setting low sonic coloration and their freedom from distortion over an extraordinarily wide dynamic range.
Highlights & Specs
Documents & Downloads
C263 Highlights
Long-throw woofers with rubber surrounds provide high output with low distortion
A 1-inch (25mm) metal-dome tweeter with an integrated waveguide provides optimized response both on and off axis
A high-order crossover network delivers accurate timbre reproduction
Boundary compensation switch (C783/C763) lets you adjust the speaker to maintain tonal accuracy when the speaker is placed near a wall
Three-position tweeter level control (C783/C763/C583/C563) lets you adjust for optimum response in a variety of acoustical environments, or for using the speakers without grilles
General Specifications
Height | Cutout dimensions (dia.) 8” (20.3 cm) Square grille finished Height 9.1” (23.1 cm) |
|---|---|
Width | Square grille finished Width 9.1” (23.1 cm) |
Depth | Mounting Depth 4.8” (120mm) |
Weight | 3.1 lb (1.4 kg) / Shipping weight 4.6 lb (2.1 kg) |
High Frequency Driver Components | 1” Aluminum-Dome Tweeter with Waveguide |
Low Frequency Extension | 6-1/2” Aluminum Cone, Cast-Polymer Frame Woofer |
Mounting | C-2 fastening mechanism • Compatible with wall material thickness range 0.5” – 2.0” (1.3 cm – 5.0 cm) |
Recommended Amplifier Power | 10 - 100 Watts RMS |
