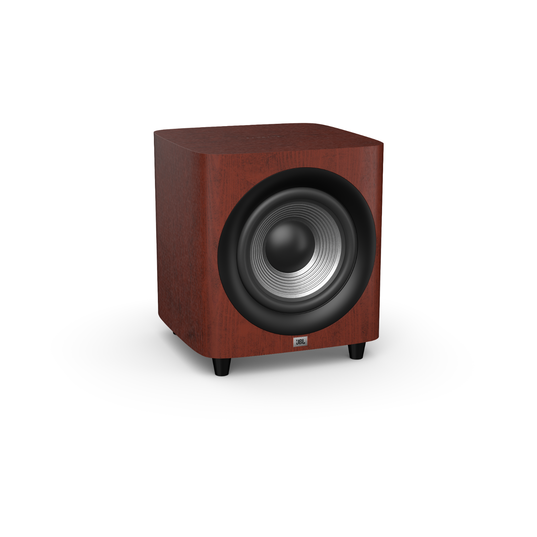

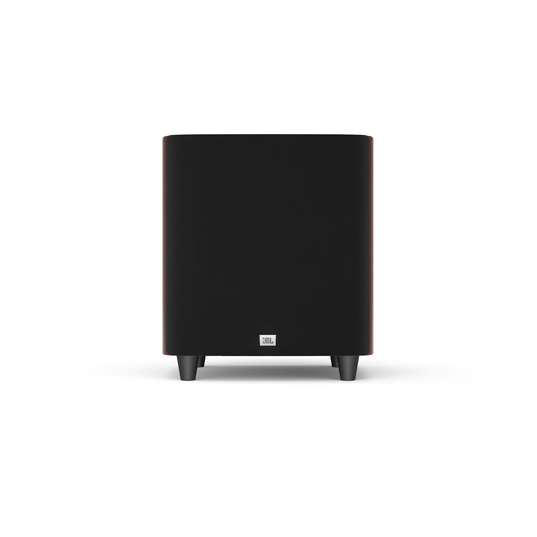

The JBL Studio 660P is a high-performance powered subwoofer utilizing a front-firing 12-inch PolyPlas cone woofer with dual down-firing tuned ports. A 500Wrms amplifier provides the sonic impact and a full complement of inputs and controls make for easy system integration. The elegant cabinet design includes a magnitically attached grille and brings an element of sophistication to any room. The Studio 6 Series delivers big dynamics, detailed sound, and powerful bass for true high-fidelity sound.

Product Description

Studio 660P

The new JBL Studio 6 speaker system is everything your inner audiophile was hoping for. Complete with advanced PolyPlas cones, powerful acoustics speaker drivers, and fitted with an all-new, high-definition imaging waveguide using a high-frequency compression driver, your home listening experience will never be quite the same.

General Specifications

12" Powered sub-woofer system with 1000W amplifierYes

12" (305mm) PolyPlas Low-Frequency WooferYes

Power500W RMS (1000W Dynamic)

Frequency Response28 Hz - 150 Hz

Crossover Frequencies50Hz – 150Hz (variable) 24dB/octave

ControlsAuto Power, Crossover, Level, Phase

InputOne (1) Line-Level LFE Input

Enclosure TypeBass-Reflex via Bottom-Firing Tuned Port

Power Requirement120V, 60Hz (US) ; 220V-230V, 50/60Hz (EU)

Power Consumption (Idle/Full/Power)<0.5W (standby)/700W/4A (max – 230V)/700W/7.2A (max – 120V)

Dimensions (W x D x H)420 x 420 x 420mm
